Between Centers, Long Series Ultra-Lock Collet Arbor

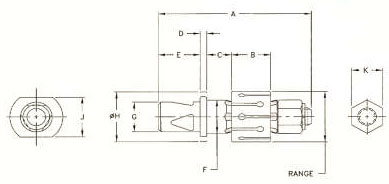

Catalog #	Range	A	B	C	D	E	F	G	H	J	K
ULC-1100	0.500-0.655 10 Collets	2.49	0.88	0.39	0.12	0.75	0.4702- 0.4692	0.5005- 0.4995	0.82	0.68	0.44
ULC-1200	0.593-0.780 12 Collets	2.90	1.06	0.42	0.12	0.75	0.5796- 0.5786	0.5005- 0.4995	0.88	0.75	0.44
ULC-1300	0.718-0.999 18 Collets	3.18	1.25	0.50	0.12	0.75	0.7046- 0.7036	0.5005- 0.4995	1.00	0.88	0.56
ULC-1400	0.875-1.249 12 Collets	3.96	1.44	0.56	0.16	1.00	0.8452- 0.8442	0.7505- 0.7495	1.25	1.00	0.75
ULC-1500	1.125-1.624 16 Collets	4.46	1.62	0.68	0.18	1.00	1.0796- 1.0786	0.7505- 0.7495	1.50	1.25	0.88
ULC-1600	1.468-2.092 20 Collets	5.25	1.82	0.82	0.22	1.25	1.4077- 1.4067	1.0005- 0.9995	1.88	1.62	1.12
ULC-1700	1.937-2.843 29 Collets	5.82	2.00	1.00	0.25	1.25	1.8452- 1.8442	1.0005- 0.9995	2.38	2.06	1.38
ULC-1800	2.563-3.593 33 Collets	7.06	2.25	1.10	0.31	1.88	2.439- 2.438	1.6255- 1.6245	2.88	2.62	2.00
ULC-1900	3.312-4.467 37 Collets	7.31	2.50	1.10	0.31	1.88	3.1890- 3.1880	1.6255- 1.6245	3.75	3.38	2.00



Components

For Use with	Shaft	Dirt Seal	Expander	Exp. Nut	Safety Nut	Adapter
ULC-1100	ULC-150	ULC-190	ULC-160	ULC-270	ULC-280	ULC-155
ULC-1200	ULC-250	ULC-290	ULC-260	ULC-270	ULC-280	ULC-155
ULC-1300	ULC-350	ULC-390	ULC-360	ULC-370	ULC-380	ULC-155
ULC-1400	ULC-450	ULC-490	ULC-460	ULC-470	ULC-480	ULC-455
ULC-1500	ULC-550	ULC-590	ULC-560	ULC-570	ULC-580	ULC-455
ULC-1600	ULC-650	ULC-690	ULC-660	ULC-670	ULC-680	ULC-655
ULC-1700	ULC-750	ULC-790	ULC-760	ULC-770	ULC-780	ULC-655
ULC-1800	ULC-850	ULC-890	ULC-860	ULC-870	ULC-880	ULC-655
ULC-1900	ULC-950	ULC-990	ULC-960	ULC-870	ULC-880	ULC-655
