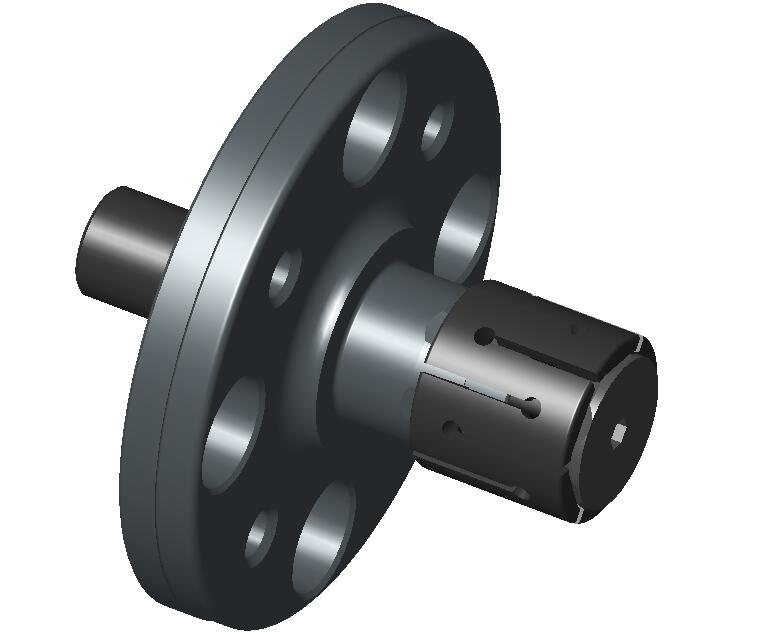

Short Drawbar Operated Collet Chuck flange-short

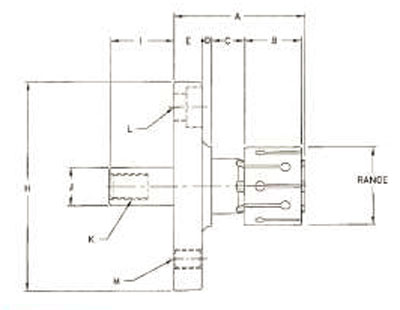

Catalog Number Range A B C D E F G H I J K L M
ULC-8100 0.500-0.655
15 Collets		 1.81 0.59 0.42 0.25 0.5 0.4702-
0.4692		 0.88 3.3755-
3.375		 0.781 0.562 3/8-24 For (4) 3/8 S.H.S.
on 2.50 B.C.		 For (4) 5/16-24
on 2.375 B.C.
ULC-8200 0.593-0.797
20 Collets		 1.97 1.72 0.45 0.25 0.5 0.5796-
0.5786		 1 3.3755-
3.375		 0.781 0.562 3/8-24 For (4) 3/8 S.H.S.
on 2.50 B.C.		 For (4) 5/16-24
on 2.375 B.C.
ULC-8300 0.718-1.000
28 Collets		 2.15 1.84 0.51 0.25 0.5 0.7046-
0.7036		 1.12 3.3755-
3.375		 0.781 0.562 3/8-24 For (4) 3/8 S.H.S.
on 2.50 B.C.		 For (4) 5/16-24
on 2.375 B.C.
ULC-8400 0.875-1.299
20 Collets		 2.35 1.94 0.59 0.18 0.56 0.8452-
0.8442		 1.38 4.1255-
4.125		 1.22 0.75 1/2-20 For (4) 1/2 S.H.S.
on 3.12 B.C.		 For (4) 3/8-24
on 2.875 B.C.
ULC-8500 1.125-1.642
24 Collets		 2.59 1.125 0.65 0.18 0.56 1.0796-
1.0786		 1.56 4.1255-
4.125		 1.22 0.75 1/2-20 For (4) 1/2 S.H.S.
on 3.12 B.C.		 For (4) 3/8-24
on 2.875 B.C.
ULC-8600 1.468-2.104
30 Collets		 2.93 1.22 0.83 0.12 0.68 1.4077-
1.4067		 1.88 4.8755-
4.875		 1.625 0.968 3/4-16 For (4) 1/2 S.H.S.
on 3.75 B.C.		 For (4) 3/8-24
on 3.625 B.C.
ULC-8700 1.937-2.821
42 Collets		 2.98 2.31 0.79 0.12 0.68 1.8452-
1.8442		 2.38 4.8755-
4.875		 1.625 0.968 3/4-16 For (4) 1/2 S.H.S.
on 3.75 B.C.		 For (4) 3/8-24
on 3.625 B.C.

Components

Drawbar arbor Long Connector Retaining Ring Lock Pin Flange Shaft Dirt Seal Expander
FOR USE
WITH		 CONNECTOR RETAINER
RING		 LOCK PIN FLANGE
SHAFT		 DIRT SEAL EXPANDER
ULC-2110 ULC-8262 ULC-8186 ULC-8185 ULC-8152 ULC-8190 ULC-8165
ULC-2210 ULC-8262 ULC-8186 ULC-8185 ULC-8252 ULC-8290 ULC-8265
ULC-2310 ULC-8362 ULC-8186 ULC-8185 ULC-8352 ULC-8391 ULC-8365
ULC-2410 ULC-8462 ULC-8486 ULC-8485 ULC-8452 ULC-8490 ULC-8465
ULC-2510 ULC-8562 ULC-8486 ULC-8485 ULC-8552 ULC-8590 ULC-8565
ULC-2610 ULC-8662 ULC-8686 ULC-8685 ULC-8652 ULC-8690 ULC-8665
ULC-2710 ULC-8662 ULC-8686 ULC-8685 ULC-8752 ULC-8790 ULC-8765
