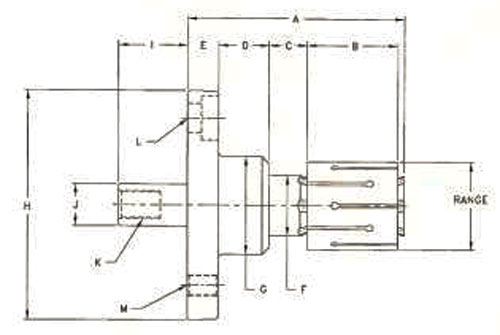

| Catalog # | Range | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ULC-2110 | 0.500-0.655 10 Collets | 2.49 | 0.88 | 0.39 | 0.66 | 0.50 | 0.4702- 0.4692 | 1.25 | 3.3755- 3.375 | 0.750 | 0.562 | 3/8-24 | For (4) 3/8 S.H.S. on 2.50 B.C. | For (4) 5/16-24 on 2.50 B.C. |
| ULC-2210 | 0.593-0.780 12 Collets | 2.69 | 1.06 | 0.41 | 0.66 | 0.50 | 0.5796- 0.5786 | 1.25 | 3.3755- 3.375 | 0.750 | 0.562 | 3/8-24 | For (4) 3/8 S.H.S. on 2.50 B.C. | For (4) 5/16-24 on 2.50 B.C. |
| ULC-2310 | 0.718-0.999 18 Collets | 2.96 | 1.25 | 0.49 | 0.66 | 0.50 | 0.7046- 0.7036 | 1.25 | 3.3755- 3.375 | 0.750 | 0.562 | 3/8-24 | For (4) 3/8 S.H.S. on 2.50 B.C. | For (4) 5/16-24 on 2.50 B.C. |
| ULC-2410 | 0.875-1.397 17 Collets | 3.58 | 1.44 | 0.56 | 0.90 | 0.56 | 0.8452- 0.8442 | 1.75 | 4.1255- 4.125 | 1.220 | 0.750 | 1/2-20 | For (4) 1/2 S.H.S. on 3.12 B.C. | For (4) 3/8-24 on 2.875 B.C. |
| ULC-2510 | 1.125-1.656 17 Collets | 3.89 | 1.62 | 0.69 | 0.90 | 0.56 | 1.0796- 1.0786 | 1.75 | 4.1255- 4.125 | 1.220 | 0.750 | 1/2-21 | For (4) 1/2 S.H.S. on 3.12 B.C. | For (4) 3/8-24 on 2.875 B.C. |
| ULC-2610 | 1.468-2.092 20 Collets | 4.14 | 1.81 | 0.82 | 0.72 | 0.68 | 1.4077- 1.4067 | 2.50 | 4.8755- 4.875 | 1.590 | 0.968 | 3/4-16 | For (4) 1/2 S.H.S. on 3.75 B.C. | For (4) 3/8-24 on 3.625 B.C. |
| ULC-2710 | 1.937-2.834 29 Collets | 4.46 | 2.00 | 1.00 | 0.66 | 0.68 | 1.8452- 1.8442 | 2.50 | 4.8755- 4.875 | 1.590 | 0.969 | 3/4-16 | For (4) 1/2 S.H.S. on 3.75 B.C. | For (4) 3/8-24 on 3.625 B.C. |
| ULC-2810 | 2.562-3.593 33 Collets | 4.83 | 2.25 | 1.12 | 0.66 | 0.68 | 2.4390- 2.4385 | 3.00 | 5.5005- 5.5000 | 1.590 | 0.970 | 3/4-18 | For (4) 1/2 S.H.S. on 4.50 B.C. | For (4) 3/8-24 on 3.625 B.C. |
| ULC-2910 | 3.312-4.467 37 Collets | 4.97 | 2.50 | 1.11 | 0.56 | 0.68 | 3.1855- 3.1880 | 3.62 | 5.5005- 5.5000 | 1.590 | 0.970 | 3/4-18 | For (4) 1/2 S.H.S. on 4.50 B.C. | For (4) 3/8-24 on 3.625 B.C. |
Components
 |
 |
 |
 |
 |
 |
 |
| For Use With | Connector | Retainer Ring | Lock Pin | Flange Shaft | Dirt Seal | Expander |
|---|---|---|---|---|---|---|
| ULC-2110 | ULC-162-A | ULC-8186 | ULC-8185 | ULC-159 | ULC-190 | ULC-165 |
| ULC-2210 | ULC-162-A | ULC-8186 | ULC-8185 | ULC-259 | ULC-291 | ULC-265 |
| ULC-2310 | ULC-362-A | ULC-8186 | ULC-8185 | ULC-359 | ULC-391 | ULC-365 |
| ULC-2410 | ULC-462-A | ULC-8486 | ULC-8485 | ULC-459 | ULC-491 | ULC-465 |
| ULC-2510 | ULC-562-A | ULC-8486 | ULC-8485 | ULC-559 | ULC-591 | ULC-565 |
| ULC-2610 | ULC-662-A | ULC-8686 | ULC-8685 | ULC-659 | ULC-691 | ULC-665 |
| ULC-2710 | ULC-662-A | ULC-8686 | ULC-8685 | ULC-759 | ULC-791 | ULC-765 |
| ULC-2810 | ULC-862-A | ULC-8686 | ULC-8685 | ULC-859 | ULC-890 | ULC-865 |
| ULC-2910 | ULC-862-A | ULC-8686 | ULC-8685 | ULC-959 | ULC-990 | ULC-965 |
